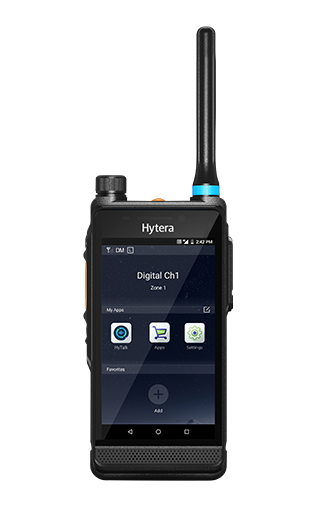

Hytera PDC550
The PDC550 is a smart PoC radio which enables the collaboration of mutiple communication modes including broadband and narrowband networks as well as public and private networks in various scenarios.
| Frequency Band | DMR Network
UHF: 400-470MHz Public Network Europe & Asia-Pacific & Africa & South Korea: GSM: 850/900/1800/1900 TD-SCDMA: B34/B39 CDMA:BC0 WCDMA: B1/B3/B5/B8 TDD-LTE: B38/B39/B40/B41 FDD-LTE: B1/B3/B5/B7/B8/B20/B26/B27/B28 |
| Memory | 3GB RAM+ 32GB ROM, Expandable memory (Maximum 128GB) |
| Dimensions | 155*75*21.5mm |
| Weight | 375g(including battery, antenna, and back clip) |
| Screen | 5.0-inch HD touch screen, 1280x720 resolution |
| Key | 5: 1*PTT, 2*programmable key, 1*alarm key, 1*power key |
| Cameras | Rear 13 mega-pixel camera + front 5 mega-pixel camera |
| Battery | Standard 2400 mAh/optional 3500 mAh, 7.4V |
| Card Slots | 3, 2*Nano SIM card slot, 1*Micro SD card slot |
| WLAN | 2.4GHz, 802.11 b/g/n |
| Sensors | Gravity sensor, compass, distance sensor, optical sensor |
| Locating | GPS/AGPS/GLONASS/Galileo/BeiDou
(shared for broadband and narrowband networks) |
| Bluetooth | BT 4.1 (shared for broadband and narrowband networks) |
| NFC | External narrowband antenna + embedded broadband MIMO antenna |
| Microphone | 3 mics. Dual-microphone noise suppression |
| Speaker | Rated power: 1W, Max: 2.5W |
| Video Shooting | 1080P, 30fps |
| Video and Image Format | H.263,P0,H.264,BP/MP/HP,MPEG-4,SP/ASP,DivX,4x/5x/6x,VP8, VP9,H.265,MP
JPG,GIF,BMP,PNG ,WEbP |
| Audio Format | MP3; aacPlus, eAAC; AMR-NB, AMR-WB, G.711, Windows Media Audio，(WMA) 9/10 Pro |
| Moisture Resistance | MIL-STD-810 G |
| Dust and water proof | IP68 |
| Anti-fall | 1.2m |
