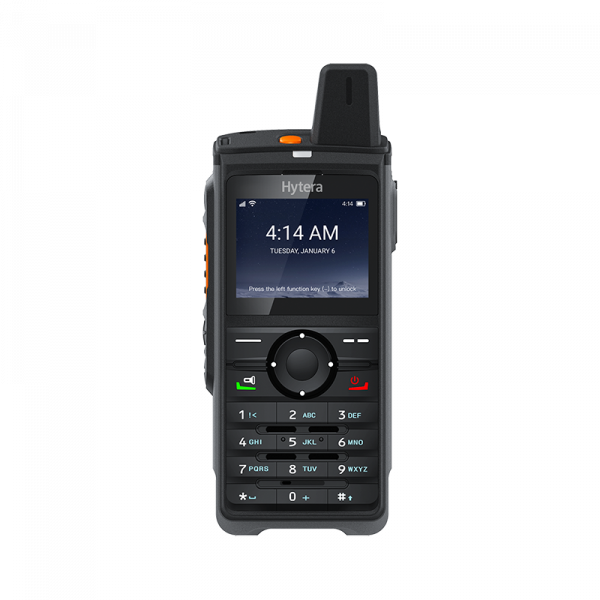

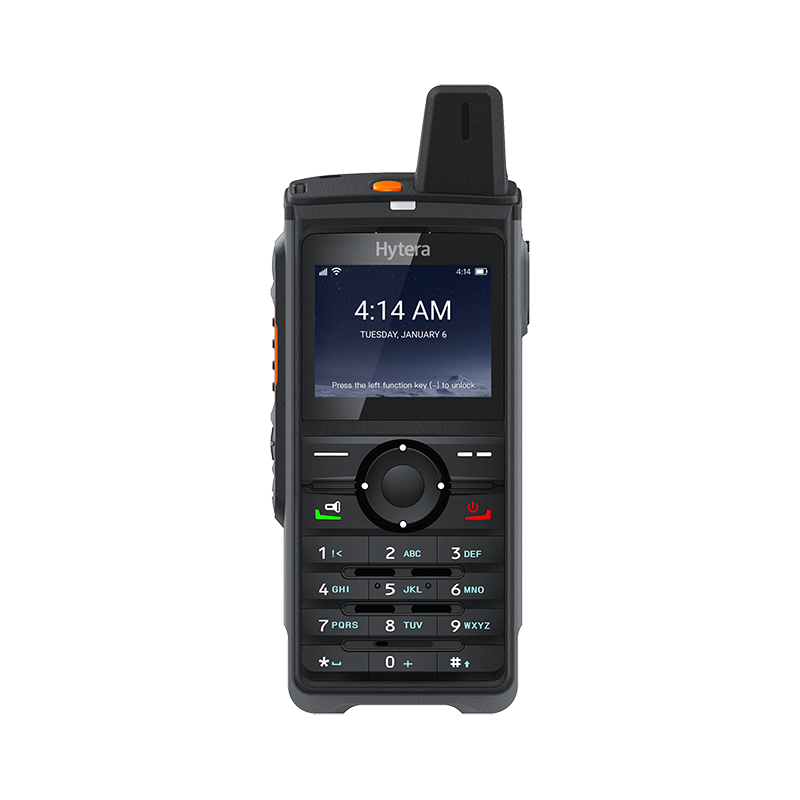

Hytera PNC380

Hytera PNC380

The Hytera PNC380 POC Radio combines the instant communication and multimedia applications into a single device. Over the 2G, 3G, 4G, and WLAN networks, the device delivers rich multimedia data services, including 4G video transmission, location sharing, and instant messaging.

Category:
Wireless Data Communication
LTE
Asia,Europe,Middle East and Africa(Basic&Por):
FDD-LTE: B1/B3/B5/B7/B8/B18/B19/B20/B26/B27/B28
TDD-LTE: B38/B39/B40/B41
American(Por):
FDD-LTE: B2/B3/B4/B5/B7/B12/B13/B17/B26/B28
TDD-LTE: B38/B41
WCDMA
Asia,Europe,Middle East and Africa(Basic&Por):B1/B3/B5/B8
American(Por):B2/B4/B5
TD-SCDMA
Asia,Europe,Middle East and Africa(Basic&Por):B34/B39
CDMA
Asia,Europe,Middle East and Africa(Basic&Por):BC0
GSM
Asia,Europe,Middle East and Africa(Basic&Por):850/900/1800/1900
American(Por):850/900/1800/1900
WLAN
2.4GHz and 5GHz
BT
BT 4.1
Positioning
GPS/GLONASS/BDS/AGPS
NFC
PNC380 Pro：Supported
General
Dimensions(H×W×D) mm
145.1x 60 X 26.1mm
Weight
208g(with battery and antenna)
Memory
PNC380 Basic：
RAM：512MB,ROM：4GB
PNC380 Pro：
RAM：1GB,ROM：8GB
Peripheral Interface
Micro USB 2.0(5V/2A)
3.5 mm audio jack
Display
2.0〃320*240
Keypad
Full keypad
Battery
4000 mAh
Camera
PNC380 Pro：
5 MP rear camera
Flash：Supported
Video recording：720 P (1280x720) 30 FPS
Charging Mode
PNC380 Basic：Micro USB 2.0 (5 V/1.4 A)
PNC380 Pro：Micro USB 2.0 (5 V/2 A)
Battery Life
≥ 24 h (5-5-90 duty cycle)
Operating Voltage
3.85V
Card Slots
1 Nano SIM card slot and 1 Micro SD card slot
Video and Imaging
Video File Types
PNC380 Pro Video file format：MPEG-4 (.mp4), 3GPP (.3gp)
PNC380 Pro Video coding format：VP8, H.264 (BP/MP/HP), MPEG-4 (SP/ASP), H.263 (HEVC)
Image File Types
PNC380 Pro：JEPG (.jpg), PNG (.png)
Audio
Microphone
2
Dual Mic Noise Reduction
Support
Speaker
32 mm, circular, rated power: 1 W
File Types
MPEG (.m4a),3GPP（.3gp)
Environmental
Dust & Water Protection
IP67
Shock & Vibration
MIL-STD-810 G
ESD
IEC 61000-4-2（level 3）
Humidity
MIL-STD-810 G
